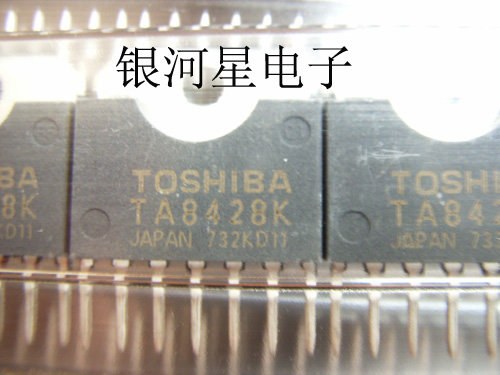

直流電機驅動IC TA8428K

型號:TA8428K(S)/TA8428F

品牌：TOSHIBA

批號：07+ROHS

封裝：7-PIN SIP / HSOP-20

技術資料：歡迎來電索取~`



FULL BRIDGE DRIVER


The TA8428K (S), TA8428F is Full Bridge Driver IC for Brush
Motor Rotation Control.
Forward Rotation, Reverse Rotation, Stop and Braking operations
are available.
Thermal Shutdown and Short Current Protector are provided.


FEATURES

Output Current : TA8428K (S) 1.5 A (AVE.), 3.0 A (PEAK)
TA8428F 0.8 A (AVE.), 2.4 A (PEAK)

4 modes (forward / reverse / short brake and stop) are
available with 2 TTL compatible i…
