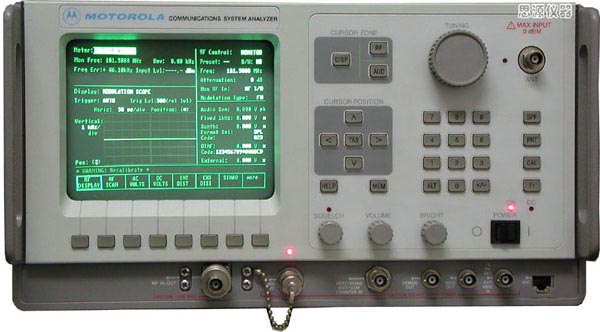

R2600C 無線電通信綜合測試儀

點擊查看原圖
公司名稱：北方思源電子技術中心
所屬類別：電源配套分類>>測試儀器
電子信箱：52634729@qq.com
聯系電話：010-62123259
聯 系 人：孫廷孝
更新時間：2011-3-23 17:12:56
點擊這里與企業談話
產品詳情

R2600C 無線電通信綜合測試儀

廠家: 摩托羅拉

  • STANDARD V3.02.S03
  • CELLULAR V3.02.C03
選件配置 OPTIONS
  1. TRACK GENERATOR 跟蹤源
  2. GRAPHICS PRINTOUT
  3. ENHANCED SPECTRUM ANALYZER/MARKER
  4. FULL TEST SETUPS
  5. CCITT FILTER/600-OHM DVM INPUT
  6. C-MSG FILTER/600-OHM DVM INPUT
  7. IEEE-488
  8. CABLE FAULT

R-2600系列無線通信設備綜合測試儀是一種便攜式儀器，用于對頻率范圍為 400KHz 到 999.9999MHz 的無線通信設備進行監視或維修。該儀器可發生信號，測量調制和頻率，完成一系列通常要由下列儀表才能完成的測試：射頻信號發生器、頻率計數器、場強計、靈敏測量接收機、AC/DC電壓表、信納比表(失真儀)、頻譜儀、功率計、畸變分析儀、雙工偏移發生器、掃描發生器、示波器、信令編碼/解碼器。

性能介紹

Operating / Display

Modes AM/FM Monitor
AM/FM Generate
Audio Synthesizer
Spectrum Analyzer
Duplex Generator
Sweep Generator
Frequency Counter
Digital Voltmeter
Wattmeter
Oscilloscope
Signal Strength Meter
SINAD/Distortion Meter

RF Signal Generator

FREQUENCY 　
Range: 400 kHz - 1 GHz
Resolution: 100 Hz
Accuracy: Refer to Accuracy of Master Oscillator
Stabilization Time: .1 Second
OUTPUT 　
Range FM: -130 dBm to 0 dBm
Range AM: -130 dBm to -3 dBm
Accuracy: ±2 dB from -0.80 dBm to -130 dBm (RF I/O PORT)
　 ±4 dBm for all other output levels and ports. 3 MHz to 1 GHz
SWEEP GENERATOR
Range; 400 kHz - 1 GHz
Resolution: 100 Hz
Output: -130 dBm to 0 dBm
Sweep Width: Selectable up to ±5 MHz of center freq.
Scope Coupling: Synchronized scope trace to the sweep signal
Accuracy: Same as Signal Generator
　 　
DUPLEX GENERATOR
Range: 400 kHz - 1 GHz
Resolution: 100 Hz
Output: -130 dBm to 0 dBm
Frequency Offset: 0 MHz to ±55 MHz in 5 kHz steps
Accuracy: Same as Signal Generator
SPECTRA PURITY
Spurious: 35 dB within ±20 MHz of selected carrier frequency. Additional fixed spurs at an absolute level of <90 dBm at harmonic frequencies of 5 MHz. (These can affect level and modulation measurements when operated at low levels at or very near these specific frequencies.)
Harmonics: - 20 dBc
FM MODULATION
Deviation: 99.5 kHz
Accuracy: 5% of setting ±25 Hz @ 1 kHz (NB)
5% of setting ±250 Hz @ 1 kHz (WB)
Residual FM: 20 Hz max @ 300 Hz to 3 kHz
External/Internal Frequency Range: 5 Hz to 20 kHz, ±2 dB
PHASE MODULATION (Optional)
Range: 0.5 to 10 radians
Accuracy: ±8% at 1 KHz
Resolution: 1 radians (.01 below 2.00 radians) External/Internal
Internal/External Frequency Range: 300 to 3000 Hz

Audio Modulation Synthesizer

Modulation Types: 1 kHz tone, PRIVATE LINE, DIGITAL PRIVATE LINE, Single Tone, DTMF, Two-Tone Paging, 5/6 Tone Paging, International Select V, 20 Tone General Sequence, Tone Remote Control, External inputs from both a supplied microphone and BNC input.
Frequency Range: 10 Hz to 20 kHz ±1 dB
Mod Output Level: Programmable into 7.95 v peak
Mod Input Impedance: 100 ohms nominal
1 kHz Tone Distortion: Not to exceed 1%
External Modulation Input: Front panel microphone and a BNC jack are summed
BNC Input Impedance: 600 ohms nominal
Microphone Supplied: HMN1056
Microphone Input Conditioning: Internal audio limiting providing IDC and pre-emphasis.

RF Receiver

FREQUENCY 　
Range: 400 kHz - 1 GHz
Resolution: 100 Hz
Accuracy: Refer to Accuracy of Master Oscillator
Spurious Response: 40 dB typical
SENSITIVITY (Above 10 MHz)
Narrowband FM: 2.0 uV for 10 dB EIA SINAD
Wideband FM: 10 uV for 10 dB EIA SINAD
FREQUENCY ERROR METER
Type of Display: Autoranging
Resolution: 1 Hz
FM DEVIATION MEASUREMENT
Demod Range: Up to ±5 kHz in Narrowband
Up to ±75 kHz in Wideband
Accuracy: ±5% plus peak residual FM
Frequency Response: Selectable per the following:
Low Pass Filters 20 kHz, 3kHz, 300Hz
High Pass Filters 5 Hz, 300 Hz, 3kHz
Demodulated Output Level: .8 v peak per 1 kHz peak Deviation in Narrowband and per 10 kHz Deviation in Wideband
Demodulation Output Impedance: 100 ohms nominal
Deviation Alarm: Audible, set via keypad in 100 Hz increments
AM MODULATION MEASUREMENTS
Demodulation Range: 0 to 100%
Accuracy: ±5% for levels below 80%
Frequency Response: Selectable per the following:
Low Pass Filters 20 kHz, 3 kHz, 300 Hz
High Pass Filters 5 Hz, 300 Hz, 3 kHz
Demodulated Output Level: .8v peak per 10% AM modulation
PHASE MODULATION (Optional)
Demod Range: Narrowband = 1 radian
Wideband = 10 radians
Accuracy/Frequency Response: ±5% ±0.1 rad, ± residual noise at 1 kHz,
±7.5% ±0.1 rad, ± residual noise 300 Hz to 3.5 kHz

Metering and Measurement

SPECTRUM ANALYZER - SEE AND HEAR™
Frequency Range: 400 kHz to GHz
Dispersion: 200 kHz window - (20 kHz per div)
500 kHz window - (50 kHz per div)
1 MHz window - (100 kHz per div)
2 MHz window - (200 kHz per div)
5 MHz window - (500 kHz per div)
10 MHz window - (1 MHz per div)
Optional: 20 MHz window - (2 MHz per div)*
50 MHz window - (5 MHz per div)*
100 MHz window - (10 MHz per div)*
* SEE AND HEARª not functional
Dynamic Range 60dB
Bandwidth: Automatically selected:
6 kHz - (100 kHz per division & below)
30 kHz - (200 kHz per division & below)
Display Range: +50 to -95 dBm
Optional Markers: Freeze, Max Hold, Peak Hold Delta or Absolute level and frequency
SIGNAL STRENGTH INDICATOR
Range: 3 MHz to 1 GHz
Accuracy: ±4 dB
Sensitivity: -100 dBm (antenna port rating)
WATTMETER (RF I/O PORT)
Frequency Range: 3 MHz to 1 GHz
Measurement Range: .1 watt to 125 watts
Input Impedance: Input Impedance: 50 ohms with maximum VSWR of 1.5:1
Accuracy: ±10%
Protection: Over temperature alarms
TRACKING GENERATOR
Frequency Range: 400 kHz to 1 GHz
Tracking Display Sweep Range: 200 kHz window - (20 kHz per div)
500 kHz window - (50 kHz per div)
1 MHz window - (100 kHz per div)
2 MHz window - (200 kHz per div)
5 MHz window - (500 kHz per div)
10 MHz window - (1 MHz per div)
20 MHz window - (2 MHz per div)
50 MHz window - (5 MHz per div)
Display Range: 0 to -80 dBm
CABLE FAULT (Optional)
Method: Standing Wave Analysis
Measure: Fault distance, cable length
Reading: Feet and meters
Accuracy: 10%
OSCILLOSCOPE
CRT Size: 9 cm x 11 cm (approx. 7 inch diagonal) raster scan display with four intensity levels
Frequency Response: 0 to 50 kHz
Vertical Input Ranges: 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1v, 2v, 5v, 10v per division
Accuracy: 5% of full scale all ranges
Sweep Ranges: 20 usec, 50 usec, 100 usec, 200 usec, 500 usec, 1 msec, 2 msec, 5 msec, 10 msec, 20 msec, 50 msec, 100 msec, 200 msec, 500 msec, 1 sec per division
Trigger: Automatic, normal and single sweep
Optional Markers: Delta Voltage, Delta Frequency, Delta Period
DIGITAL VOLTMETER
Meter Type: RMS
Frequency Range: DC plus AC of 50 Hz to 20 kHz
DC Voltage Ranges: 1.0V, 10.0 V, 100 V full scale
Accuracy: 1% full scale ±1 least significant digit
AC Voltage Ranges: 1.0V, 10.0 V, 70 V full scale
Accuracy: 5% full scale ±1 least significant digit
Freq. Response: 3 dB end points @ 50 Hz and 20 kHz
FREQUENCY COUNTER
Frequency Range: 5 Hz to 500 kHz plus Auto Tune
Period Counter Range: 5 Hz to 20 kHz
Input Level:: .1 v RMS minimum input level
Resolution: .1 Hz, 1 Hz, 10 Hz, 100 Hz and 1 kHz varying by frequency range
Auto Tune: Monitor mode, 20 MHz to 1 GHz unit will scan and find signals greater than -30 dBm
Accuracy: See TIME BASE
SINAD / DISTORTION METER
Input Level: .1 V to 10 V RMS
SINAD Accuracy: ±1 dB at 12 dB SINAD
Distortion Range: 1% to 20%
Distortion Accuracy: ±0.5% of distortion of ±10% of reading whichever is greater
Optional: C-Message Filter; CCITT Filter w/600 ohm switchable load
TONE SEQUENCE DECODE
Modulation Types: PRIVATE LINE, DIGITAL PRIVATE LINE, Single Tone, DTMF, Two-Tone Paging, 5/6 Tone Paging, International Select V, 20 Tone General Sequence.
Frequency Accuracy: ±3% from 300 Hz to 3 kHz
Duration Accuracy: ±12 msec for tones greater than 30 msec and 300 Hz
TIME BASE 　
Standard TCXO: Aging 1 ppm/yr, Temperature 1 ppm
Optional OCXO: Aging .5 ppm/yr, Temperature .05 ppm

Power and Environmental

  • AC: 100-130 VRMS or 200-260 VRMS@ 50 Hz to 440 Hz
  • DC: +11 to +16 VDC
  • Battery Option: 13.6 V, 50 minutes typical
  • Dimensions: 21.6 x 40.7 x 43.2 cm excluding accessories, battery pack and cover
  • Weight: 33 pounds (Basic model excluding accessory cover)
  • Temperature: 0 C to +50 C (operating) -40 C to +85 C (storage)

Interface Ports

  • Printer / Remote Control: RS-232 DB25 (female)
  • Color Monitor: Standard CGA, RGB, DB9 (female)
  • RS232 PORT (Requires special cable)/Optional IEEE-488 Bi-directional port provided with capability to respond to serial (optional parallel) input command vocabulary to activate functions and return measured results. Baud rates to 9600 BPS with selectable start and parity bits.

簡單操作說明如下

按鍵、旋鈕及指示燈

  1. 電源開關 —— 按開關ON，所有電路即通上電。如果有外接交流電，儀器自動用交流電；否則，儀器轉為使用直流電。在按下ON時，儀器就完成自動選擇。
  2. ON 指示燈 —— 按下ON時此燈亮。
  3. DC 指示燈 —— 當儀器使用直流電時，此燈亮。
  4. 游標區按鍵(RF，AUD及DISP) —— 確定游標在CRT三個顯示區中在哪個區有效。換區后，游標停留在上次在該區所在的位置。
  5. 游標位置按鍵(Up，Down，Left，Right，TAB) —— 此五鍵用于將游標上(Up)、下(Down)、左(Left)、右 (Right)或跳某位(TAB)地移動。
  6. HELP —— 按下可顯示用于當前屏幕的幫助信息。
  7. MEM —— 可用于內存內容的預置。
  8. 數字鍵(0-9) —— 用于向測試儀輸入數字信息。按某數字鍵，則游標所在處的數字被此鍵代表的數代替。儀器按新輸入的數工作。如果所按的數字超出允許值，則該輸入被忽略，原先顯示的數字不變。
  9. +／-  —— 將所顯示的某一值的符號反向。
  10. ALT —— 按此鍵使某一鍵的另一種替代功能起作用，此時，屏幕上的信息行顯示ALT，再按任何其他鍵后，屏幕上的ALT消失。
  11. SPF —— 顯示特別功能菜單。
  12. PRT —— 把屏幕上顯示的內容打印出來。
  13. CAL —— 命令儀器進行自校準。
  14. P1 —— 保留用作用戶選擇的特別功能。現用此鍵來從遙控工作方式轉為本地工作方式。
  15. 軟按鍵 —— 在屏幕的下部。軟按鍵的功能隨游標所在位置的變化而變化，從而對現行游標位置提供一個菜單以指示所有可能值或輸入。
  16. SQUELCH 靜噪旋鈕 —— 靜噪控制。順時針旋轉會增加靜噪打開時的信號電平門限值。
  17. VOLUME 音量旋鈕 —— 控制喇叭音量。
  18. BRIGHT 亮度旋鈕 —— 調節屏幕亮度。

CRT顯示屏

這是點陣化了的9x11cm陰極射線管顯示，顯示內容包括數據、操作控制和指導性信息.顯示方式包括數字、模擬及條狀圖。CRT在最后一次操作后的大約30分鐘內會進入一種亮度減弱的節省狀態。

插頭座

  • RF IN/OUT —— 通過皮端口把射頻輸入信號接到機內的監視器，或輸出機內產生的信號，在雙工工作方式時，經由此端口提供組合的輸入、出信號。皮端口包含射頻率計的負載。在前面板上，這是唯一可以輸入大功率射頻的端口。
  • GEN OUT —— 此口與監視輸入口相互獨立，由它提供高電平的射頻輸出。請勿由此口輸入大功率射頻 !
  • ANT —— 靈敏監視接收機的輸入端口，對測量空中電波很有用處。切勿由此口輸入大功率射頻 !
  • VERT/SINAD DIST/DVM COUNTER IN —— 此端口用作示波器Y軸、信納比表、DVM（數字萬用表）/計數器、畸變計、DVM以及頻率計數器的輸 入端。
  • DEMOD OUT —— 在監視或雙工工作方式下,恢復解調后的音頻輸出端口。
  • EXT MOD IN —— 外部調制信號輸入端口。為精確顯示電平，要求輸入信號為固定的峰峰值一伏信號。
  • MIC —— 外接話筒端口。

注 意 !!!

在GEN OUT和ANT的插座中裝有射頻保險絲以防過載，用一個板手把BNC型插府的前端部分擰下來，就可以更換保險絲。保險絲的零件號為GG-6530277C002。保險絲應剪成0.48正負0.02英寸(12.2正負0.05mm)長，其兩端應修尖以適合安裝。

插座

  • 側面板插座
    RGB PORT (9 針) —— 用于外接CGA格式的彩色監視器。
    RS-232 PORT (25 針) —— 用于外接打印機或其它控制器。
  • 后面板插座
    10MHz STD (BNC型插座) —— 由此端口接入或接出10MHz參考頻率。輸入阻抗為50歐。對輸入電平的要求是70mV到1Vrms,輸出電平大約為250uVrms.

功能

  • MON
  • GEN
  • DUPLEX
  • SWEEP GEN
  • CELLULAR (ETACS)
  • TRACK GEN

METER

  • RF DISPLAY
  • RF SCAN
  • AC VOLTS
  • DC VOLTS
  • INT DIST
  • EXT DIST
  • SINAD
  • PL/PERIOD COUNTER
  • DPL DECODE
  • DTMF DECODE
  • FREQ COUNTER
  • GEN SEQ DECODE
  • 5/6 DECODE
  • SEL V DECODE
  • CELL AUTO
  • CELL INBOUND
  • CELL OUTBOUND
  • CELL MANUAL

AUDIO

  • PL
  • DPL
  • DPL INVERT
  • TONE A
  • TONE B
  • 5/6 TONE
  • SELECT V (ZVEI, ZVEI MOD, ZVEI FRENCH, CCIR STD, CCIR 70ms, EEA)
  • A/B SEQ
  • GENERAL SEQ
  • TONE REMOTE
  • SAT
