ADDA散熱風扇/AD0612MB-D90（T）
地區(qū)城市：廣東省 －深圳市 更新時間：2013-7-15 22:32:50
聯(lián) 系 人： 李 有效期限：2014-7-9 10:08:38
公司名稱：深圳市旺景科技有限公司
電子信箱：sam@smartfan.com.cn 聯(lián)系電話：86-755-83286865

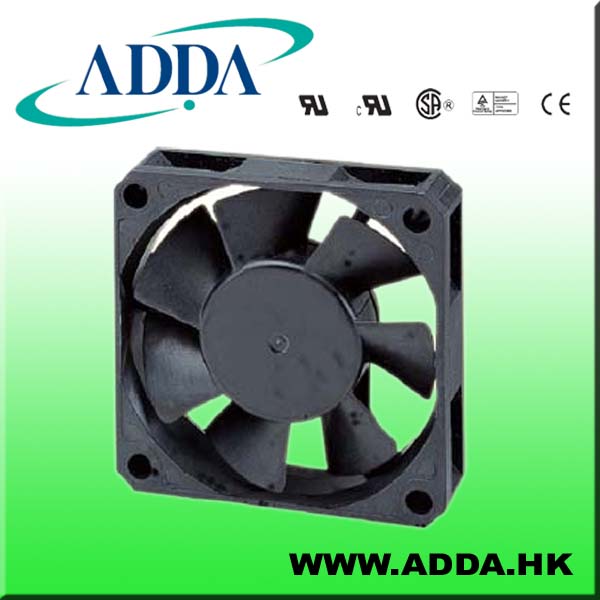

ADDA AD6015-9 dc fan
1. frame size(mm): 60X60X15
2. bearing type: ball,sleeve,1BIS,hypro bearing
3. max air flow: 28.5CFM
ADDA 60X60X15mm 12v dc cooler fan AD6015-9
|
Frame size(mm) |
60X60X15 | |
|
2 |
Bearing type |
ball,sleeve,1B1S,hypro bearing |
|
3 |
Rated voltage |
12V |
|
4 |
Rated speed |
6000RPM |
|
5 |
Max air flow |
28.5CFM |
|
6 |
maxiam pressure: |
5.87mmAq |
|
7 |
Maxiam noise |
40.4dBA |
|
8 |
Functions |
by impendance,by IC, AS+RD,AS+FG |
|
9 |
safety approvals |
CE,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
Storage Temperature: -40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Motor protection and polarity protection |
ADDA AD6015-9 dc fan
1. frame size(mm): 60X60X15
2. bearing type: ball,sleeve,1BIS,hypro bearing
3. max air flow: 28.5CFM
ADDA AD6015-9 dc fan
|
1 |
Frame size(mm) |
60X60X15 |
|
2 |
Bearing type |
ball,sleeve,1B1S,hypro bearing |
|
3 |
Rated voltage |
12V |
|
4 |
Rated speed |
6000RPM |
|
5 |
Max air flow |
28.5CFM |
|
6 |
maxiam pressure: |
5.87mmAq |
|
7 |
Maxiam noise |
40.4dBA |
|
8 |
Functions |
by impendance,by IC, AS+RD,AS+FG |
|
9 |
safety approvals |
CE,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
Storage Temperature: -40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Motor protection and polarity protection |
